FreightSnap FS5000 Integration

Ceiling-Mounted Pallet Dimensioning for High-Volume LTL Docks.

High-Speed Overhead Pallet Dimensioning

FreightSnap FS5000 is a fixed, overhead pallet dimensioning solution built for high-throughput LTL docks. Integrated with Pinnacle’s LTL Flow and leading TMS/ERP systems, it turns a single dock position into a fast, repeatable measurement lane for every pallet that passes through.

Using structured-light sensors and an integrated floor scale, FS5000 captures dimensions, weight, and a top-down image in seconds. That data flows directly into your shipping and rating systems, giving you a clean digital record from dock arrival to bill of lading and invoice.

Capture pallet dimensions and weight in under 3 seconds
Standardized, carrier-grade measurement for accurate rating
Seamless integration with LTL Flow, TMS, WMS, and ERP systems

Ship high volume LTL?

Qualify for a free FS5000 and guaranteed no rebills program.

See For Yourself

Pinnacle Customers Love the Seamless Pallet-to-Shipment Mapping

Automatically capture, validate, and sync pallet-level dimensional data throughout your entire LTL workflow.

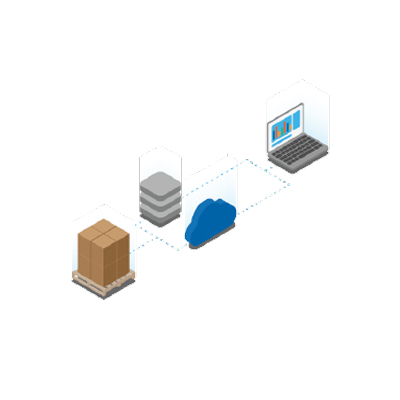

Order Receipt

As pallets arrive or are built, FreightSnap FS5000 captures accurate dimensions, weight, and a top-down image in a single step at a designated dock station. Data syncs into your dock and shipment records, cutting manual measuring and entry time by up to 75 percent.

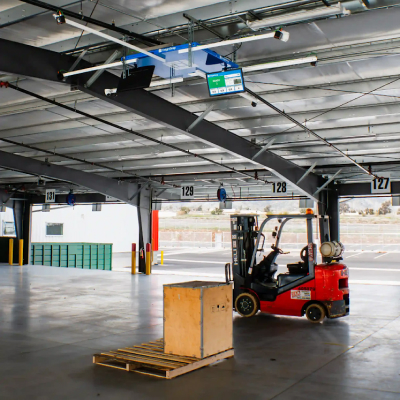

System Integration

FS5000 connects to LTL Flow and your TMS, WMS, or ERP via standard integrations and APIs. Dimensions, weight, and images populate directly into rating, routing, and documentation workflows so your team is not re-keying numbers from the dock.

Shipment Execution

With validated pallet data in your systems, you quote and tender shipments with confidence. Bills of lading reflect actual dims and weights, invoices match expectations, and you have the documentation to resolve any carrier variance or claim quickly.

See FreightSnap in Action

Watch how FreightSnap FS5000 standardizes pallet measurement at busy doors.

Overhead Dimensioning Demo

See how a forklift operator simply stages a pallet, then FS5000 handles scanning and weighing in seconds.

Integration Workflow

Learn how FS5000 data flows into LTL Flow and your TMS/ERP to automate rating and documentation.

Powerful Integration Features

Everything you need for automated pallet dimensioning and clean data flow at high-volume docks.

Order Receipt

FS5000 turns a single dock spot into a dedicated measurement lane. Operators move pallets onto the scale platform as part of their normal flow, and the overhead sensors capture dims, weight, and an image automatically. Processing time per pallet drops dramatically while accuracy improves.

System Integration

FreightSnap integrates with LTL Flow and many leading TMS, WMS, and ERP platforms. Once connected, measurement data flows straight into rating and routing logic, eliminating clipboard notes, spreadsheets, and manual entry at the office.

Shipment Execution

Because every pallet is measured the same way at the same station, you build shipments, rate them, and negotiate with carriers on standardized data. That reduces reweigh/reclass risk and makes billing and QBR conversations fact-based instead of opinion-based.

Measurable Results

This is a block of text. Double-click this text to edit it.

1%

Faster measuring and weighing.

+/-0"

Accurate measurements.

Yes

Measuring Cubes or Irregular Shapes.

Yes

Captures photos of freight for documentation.

Eliminate Manual Measurements

Replace tape measures, handwritten notes, and inconsistent dock routines.

FreightSnap FS5000 lets you dimension and weigh pallets at speed with a single motion through the scan lane. One station can handle hundreds of pallets per shift while maintaining consistent standards, freeing dock staff from measuring and re-keying tasks so they can focus on moving freight.

Optimize Freight Costs

Accurate data leads to better ratings and fewer surprises.

When every pallet has standardized dims, weights, and images, carriers have less reason to dispute your shipments. You choose the right class and carrier upfront, avoid paying for guesswork, and build a stronger case in any variance or claim discussion. Over time, this accuracy becomes leverage in pricing negotiations and carrier selection.

Customer Success Stories

"As a former CFO, I advocate for technology that is cost-effective, alleviates time-consuming tasks, and demonstrates bottom-line results. Positive ROI for our new FreightSnap solution is generated in as little as 3 months."

Doug R.

CEO

Read the Full Letter of Recommendation More Testimonials

Ready to Standardize Pallet Dimensioning at Your Docks?

Join leading shippers using FreightSnap FS5000 with Pinnacle to cut measurement time, reduce chargebacks, and strengthen their LTL programs.

Get Freightsnap Book a Quick Chat
